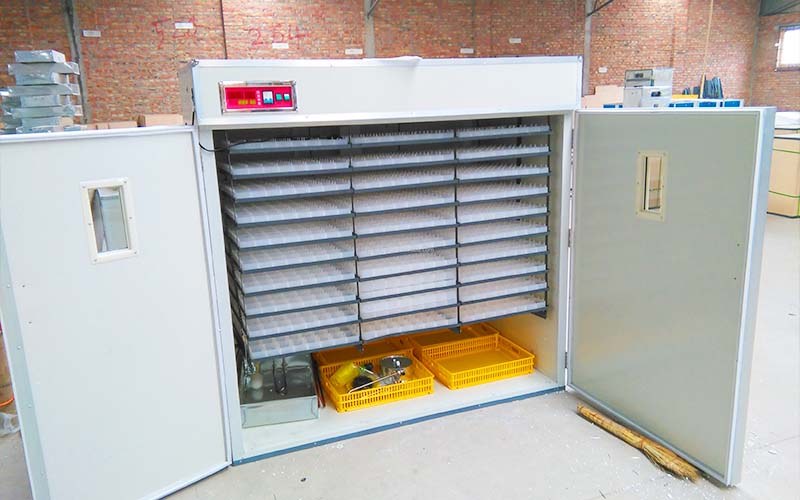

Salient Features (Hatcher)
Choice of Capacities
Possesses all internal components for the safety of food materials
Floor space free from obstacles for easy cleaning
Provides excellent ventilation for eggs and chicks
Steel Trolly, Light, in weight but Robust.
Electrical
220-250 VAC
Fan Motor 1/3 -3/4 HP
4 Heaters, each of 500 watts (per compartment)Electrical requirement for a machine is approx. 3 KW for a Hatcher. When the Hatcher has once acquired its working Temperature, the electric, requirement will be 1-2 KW per compartment.
Calibrated Thermometers of highest accuracy installed behind glass window for reading Temperature and Humidity in the cabinet. Easily, without opening the doors.
- Hatcher Baskets are made of high grade Plastic for durability and resistence to sanitise modren chemicals.
- Adequate Ventilation
- Easier to handle
- Ideal delivery for chicks
- Reduced labour and cost
Contact Thermometers operates automatically to control the solenoid valve for regulating water flow for humidifier and cooling system. Life long STAINLESS STEEL humidity guard provided.
Automatic Exhaust provided for Cooling System.
Electronic horn is provided for indicating rise or fall in Temperature or failure of electric supply.
The cabinet wall panels are made of fibre with thermocol insulation within and Trollies of thick iron painted with synthetic & with rust proof bolts and nuts. Machines can be dismantled to facilitate their passages through a normal size door.
Automatic Cooling System comprising copper pipes and controlled by thermostat through solenoid valve, is provided.
Control Panel provided, on front for quick accessability and to operate machine easily.
×
